    3.4mm Geotech Non Woven Filter Geosynthetic Fabric Cloth For Road Construction

    Ask Lasest Price
    Brand Name : Wanshengli
    Model Number : Customized
    Certification : CE, ISO, SGS, GB, BV
    Price : 0.25 USD ~3.8 USD per sqm
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 50000 sqm per day
    Delivery Time : 5~8 working days
    MOQ : 1100 sqm
    • Product Details
    • Company Profile

    3.4mm Geotech Non Woven Filter Geosynthetic Fabric Cloth For Road Construction

    3.4mm Geotech Non Woven Filter Fabric Geosynthetic Fabric For Road Construction

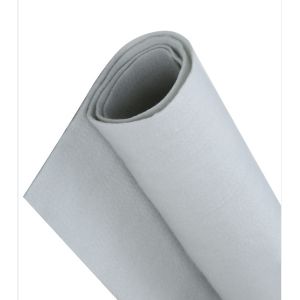

    Geosynthetic Fabric Short Non Woven Geotextile

    Our company short non woven fiber filament geotextile is made from PP polypropylene, and PET polyester, which is a new special geotechnical engineering construction material. It is ok for different thickness, because short filament fabric is stiff, thick, plump and soft. Short non woven fiber filament geotextile is interweaved into net by high technology, advanced equipment and special steps with different kinds of fibers by needling punch and other procedures.


    Because of the difference yarn, it has 2 types:

    1. short non woven filament fibers

    2. non woven filament fibers


    The short non-woven geotextile filament fiber has resistance of high temperature up to 230℃ to guanrantee maintain structure stability, high flat drainage, high elongation under certain stress, high creep resistance and vertical permeability, so can be applied in uneven and irregular bases. Many geotechnical engineering projects can use short non-woven geotextile filament fiber as materials.

    Quick Detail:

    material: PP polypropylene, PET polyester

    function: protection, isolation, reinforcement, drainage
    thickness: 2.4mm
    application: landfills, chemical plant, sewage plant


    Geosynthetic Fabric Features

    • Good flexibility
    • Corrosion resistance
    • Acid and alkali resisitance
    • Oxidation resistance
    • Good water permeability
    • Filtration and isolation performance
    Product Parameter
    No.

    Item

    Index

    Specification

    100150200250300350400450500600800Remarks
    1Unit area mass deviation,%-8-8-8-8-7-7-7-7-6-6-6
    2thickness, mm ≥0.91.31.72.12.42.733.33.64.15
    3Width deviation, %-0.5
    4Breaking strength, KN/M ≥0.080.120.160.20.240.280.330.380.420.460.6Vertical and horizontal
    5Elongation at break, %25-100
    6CBR bursting strength,KN ≥0.30.60.91.21.51.82.12.42.73.24
    7Equivalent aperture,O99(O35),mm0.07-0.2
    8Vertical permeability coefficient,cm/sKX(10 -1 -10 -3 )K=1.0-9.9
    9Tear strength 3,KN ≥0.080.120.160.20.240.280.330.380.420.40.6Vertical and horizontal

    Applications


    • As the isolation layer and for inverted layer dam, slope protection, road, railway, airfield runway.
    • Reinforcement and drainage for soil slope,retaining wall.
    • Reinforcement and drainage for Asphalt pavement, cement concrete pavement and subgrade enhancement. Both rigid and flexible road pavement applicable.
    • Soft foundation treatment/ soft soil improvement of port project; the reinforcement and drainage for beach dike, seaport wharf and seawall/bulwark.


    Geosynthetic Fabric Geotextile Package


    packed as rolls with tight belt and woven bags. I t can gurantee onvenient unloading and protecting product.
